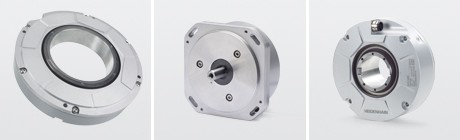

Angle encoders with integral bearing

A major hallmark of HEIDENHAIN angle encoders is their very high system accuracy. This makes them particularly advantageous in demanding applications for machine tools, measuring machines, telescopes, printing machines, etc. Because the bearing is integrated into the encoder, machine component bearings have no effect on the measuring accuracy. The following overview helps you rapidly select the appropriate encoder series for your application based on the following characteristics:

  • Measuring method
  • Shaft type
  • System accuracy

Selecting an encoder series then gives you a complete list of available variants that you can filter according to more criteria. Each article entry shows you all of the information about the orderable item:

  • Specifications
  • ID number
  • Mounting instructions
  • Brochure
  • CAD data

If you have any remaining questions, you can initiate a product query right from the article entry. This sends us all of the data on the preselected product, allowing us to react to your query with speed and precision.

Absolute angle encoders with integral bearing and built-in stator coupling for machine tools

RCN 2001/5001 series

Variants

  • Hollow through shaft Ø 20 mm / Ø 35 mm
  • System accuracy ±2,5“ / ±5“

RCN 8001 series

Variants

  • Hollow through shaft Ø 60 mm / Ø 100 mm
  • System accuracy ±1“ / ±2“

RCN 6000 series

Variants

  • Hollow through shaft Ø 180 mm
  • System accuracy ±2“

Absolute angle encoders with integral bearing and mounted stator coupling for machine tools

ECN 2100 series

Variants

  • Hollow through shaft Ø 50 mm
  • System accuracy ±10“

Absolute angle encoders with integral bearing for separate shaft coupling for machine tools

ROC 2000 series

Variants

  • Solid shaft Ø 10 mm
  • System accuracy ±5“

ROC 7000 series

Variants

  • Solid shaft Ø 14 mm
  • System accuracy ±2“

Incremental angle encoders with integral bearing and built-in stator coupling for machine tools

Incremental angle encoders with integral bearing for separate shaft couplings for machine tools

ROD 200 series

Variants

  • Solid shaft Ø 10 mm
  • System accuracy ±5“

ROD 780/880 series

Variants

  • Solid shaft Ø 14 mm
  • System accuracy ±1“ / ±2“

Incremental angle encoder with integral bearing and built-in stator coupling for measuring applications

RON 905 serie

Variants

  • Blind hollow shaft Ø 15 mm
  • System accuracy ±0,4“
